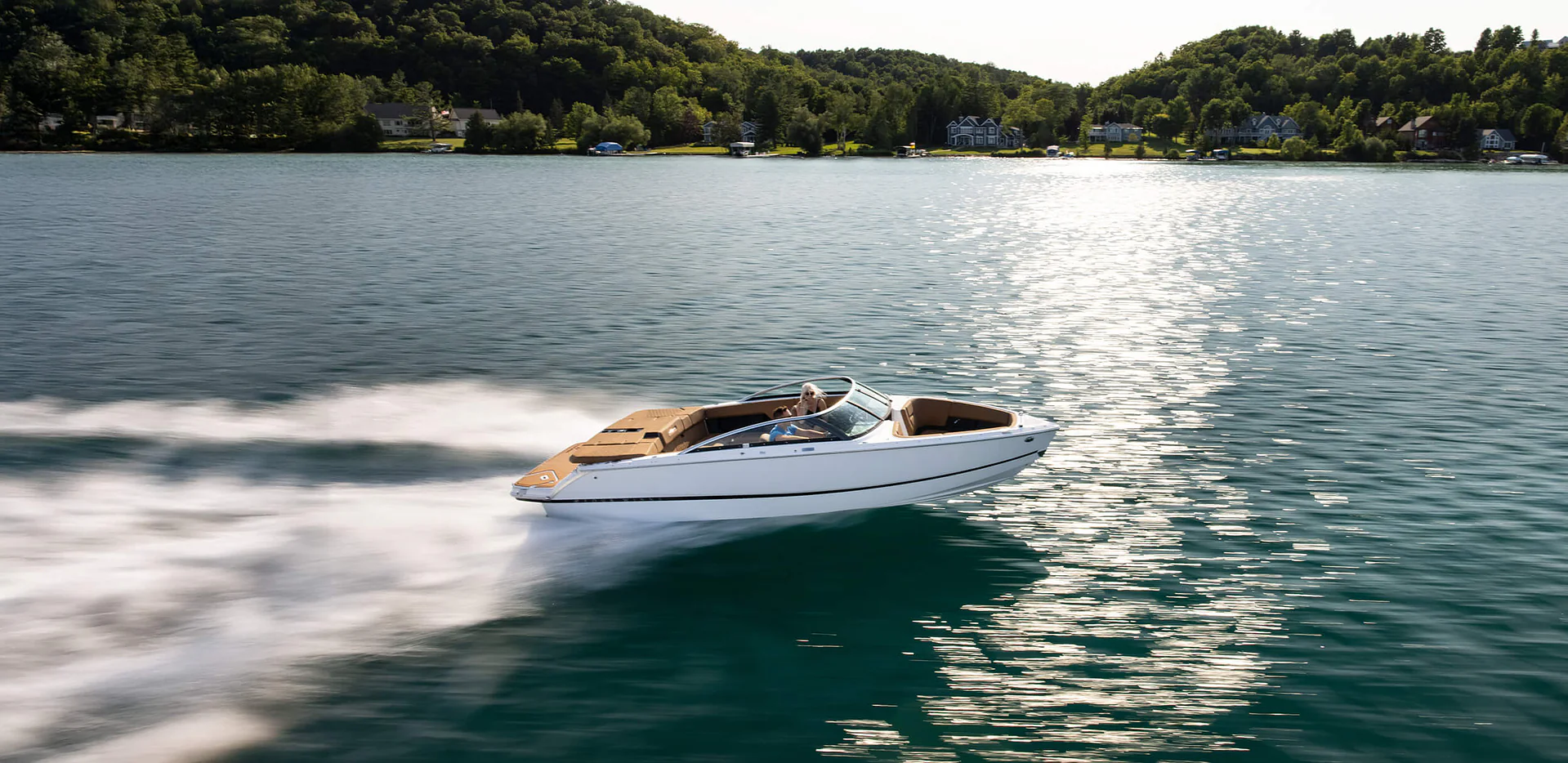

The H4, a re-imagined bowrider that brings a fresh sense of style and excitement to the category. Defined by its vertical bow stem, the H4 combines strength with a contemporary style, further proving that Four Winns is willing to break from tradition to create something iconic and new.
Four Winns H4
| Length overall | 23'11" / 7.3 m |
| LOA w/ extended swim platform | 26'30" / 8 m |
| Hull length | 23'90" / 7.24 m |
| Beam | 8'50" / 2.54 m |
| CE Certification | C10 |
| Fuel capacity | 52 gal / 197 l |
| Water capacity | 12 gal / 45 l |
| Approx. Draft Up | 19" / 0.48 m |
| Approx. Draft Down | 36" / 0.91 m |
| Persons capacity | 10 |
| Maximum Capacity | 1800 lbs / 816 kg |
| Lightship Displacement (w/o engine) | 3300 lbs / 1500 kg |
| Lightship Displacement (w/ engine) | 4500 lbs / 2040 kg |
| Max. engine power | 350 hp/cv |
| Deadrise | 18 ° |
| Bridge Clearance | 3'11" / 1.2 m |
| Bridge Clearance w/ Arch or Tower | 6'1" / 2.1 m |
| Total height | 5'60" / 1.68 m |
| Total height on trailer | 7'20" / 2.2 m |
| Height on Trailer w/Wakeboard Tower Dn | 8'1" / 2.69 m |
| Height on Trailer w/Wakeboard Tower Up | 10'1" / 3.07 m |
| Trailer weight single axe | 1249 lbs / 567 kg |
| Trailer Weight Tandem Axle | 1271 lbs / 577 kg |
| Storage length on trailer | 24'11" / 7.59 m |
| Storage length on trailer with extended swim platform | 26'1" / 7.95 m |
| Stripe color | White |
| Integral hull | White |
| Cockpit color choices | Lunar |
| Hull and deck | Bow rails, stainless steel; Bow & stern eyes, stainless steel; Cleats, fixed, stainless steel; Exterior color, all white; Exterior gel accent stripe, choice of color; Fiberglass stringer system; Horn; Ladder, stern, angled, deep-reach, hidden w/ wide steps; Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.; Navigation lights, LED; Rub rail w/ stainless steel insert; Stable-Vee® hull next generation; Swim platform, stern; Thru-hull fittings, stainless steel; Winning edge owner protection plan; Windshield header, polished; Windshield w/walk-thru, full-height, curved glass, exclusive design; |
| Tow sports accessories | Ski tow, stern, stainless steel |
| Cockpit | Assist handle(s), stainless steel, vinyl wrapped; Beverage holder(s), stainless steel; Coaming pads w/ rich hand-fitted vinyl & comfort padding; Choice of standard upholstery color; Cooler, carry-on; Courtesy lights, Blue LED; Fiberglass liner, skid-resistant, self-draining; Interior color scheme, choice of color; Port console, glove box; Seating, bow cushions, hinged; Seating, cockpit, U-shaped; Seating, ComfortRide, flip-up bucket bolster(s); Ski locker, in-floor, w/ gas-assist hinged lid & mat; Storage, beneath sundeck, mesh bags; Storage, bow & cockpit, beneath seats; Storage, cockpit, sidewall storage w/ beverage holders; Sundeck, aft w/ chaise lounge; Trash receptacle(s); Upholstery, premium contoured vinyl w/ custom detailing; Walk-thru transom; Water intrusion management system; |
| Helm | Dash, rich hand-wrapped vinyl, w/ custom detailing & LED accent lighting; Depth sounder; Emergency engine shut-off; Instrumentation, helm: touch screen, integrated gauges and GPS speed; Lighted switches, LED; Phone charger/holder, wireless; Steering wheel, premium upgrade, tilt; |
| Entertainment | Speakers, (4); Stereo, w/ AM/FM radio, Bluetooth®; USB port(s); |
| Engine / Systems / Drive | Battery single w/ on-off switch; Battery(ies); Bilge blower(s); Bilge pump(s), automatic; Engine blower; Engine vents; Outlet, 12V; Outlet, USB charge port(s); Trim switch, power at transom; Wiring harness w/ sealed connectors and tin coating for corrosion resistance; |
| Trailer | Four Winns® custom-matched trailer w/ brakes, tandem axle; Jack-stand, heavy-duty; Self-centering bunks; Submersible lighting, LED; Swing-away tongue; Wheels, aluminum; |
